Main Function:
Vilva designed a simple and easy-to-operate AC EV charging pile Aging Rack based on user needs.Support variety of standards, support AC single/3 phase charger,Type 1 and Type 2 connector. may customized.

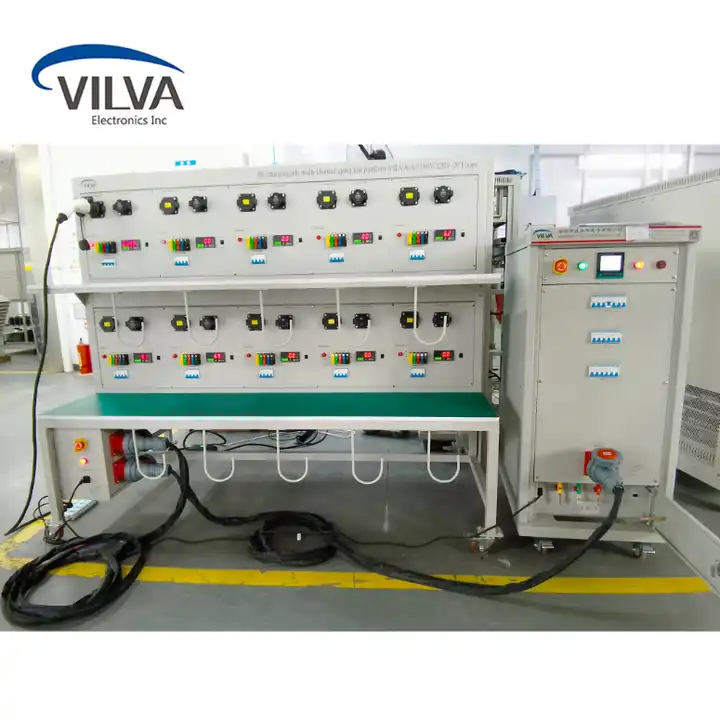

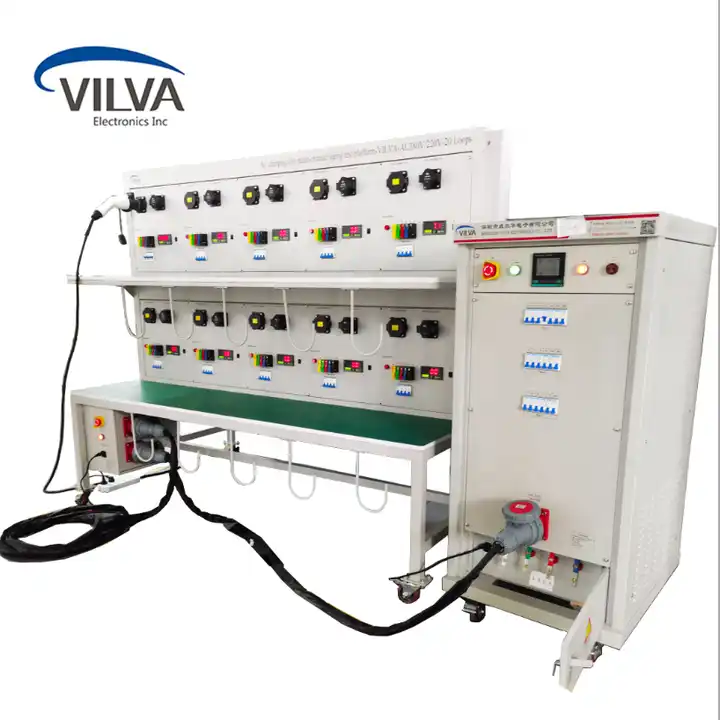

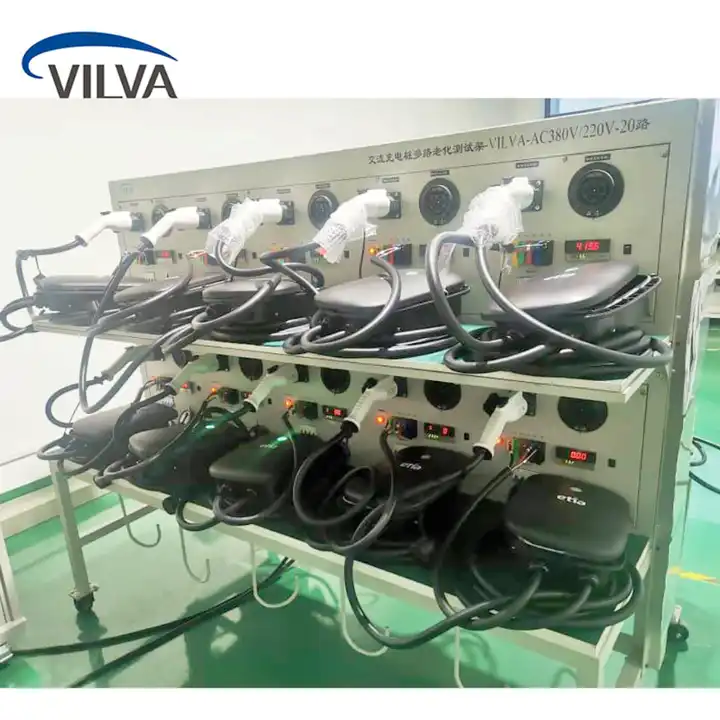

The double-sided design of the 2-layer shelf can age 10 products on each side,total of 20 channels.Connected load can be tested in series with 20 channels, realize any channel aging or multi-channel series aging.

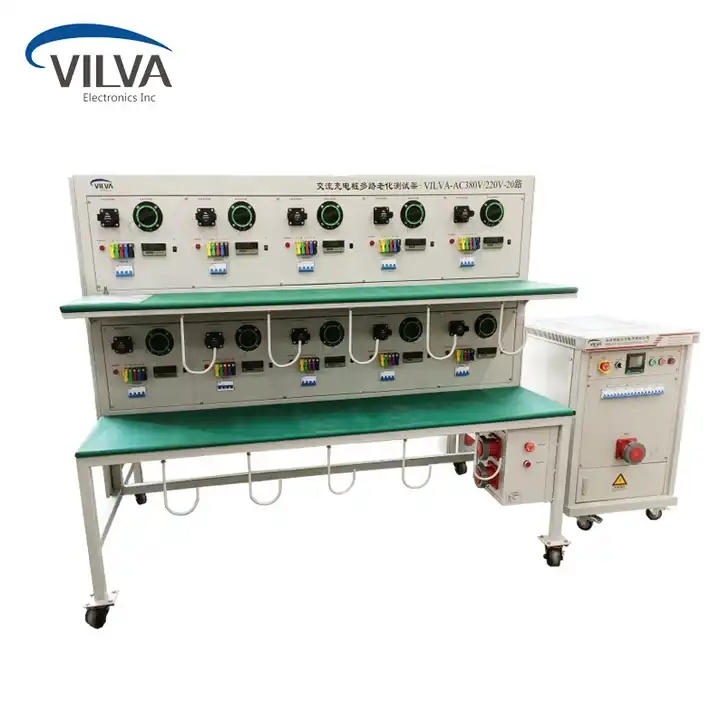

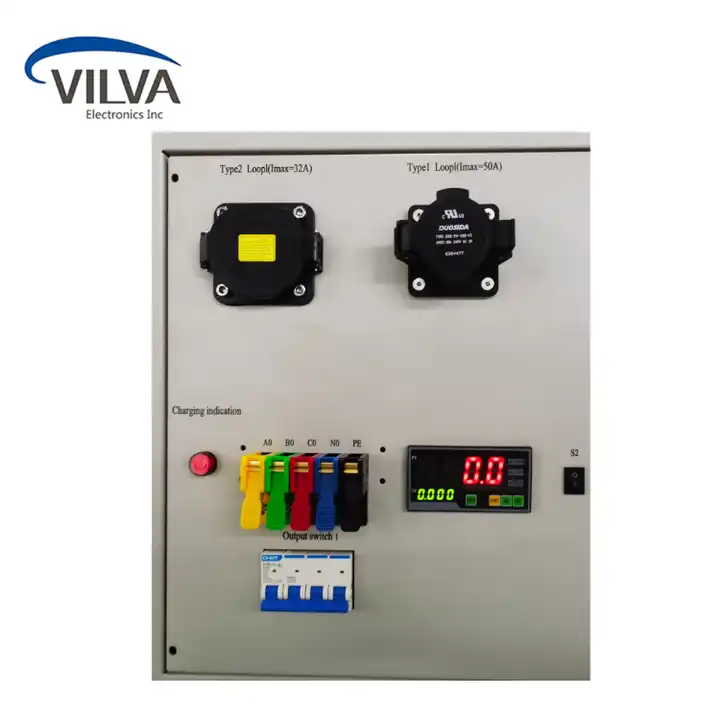

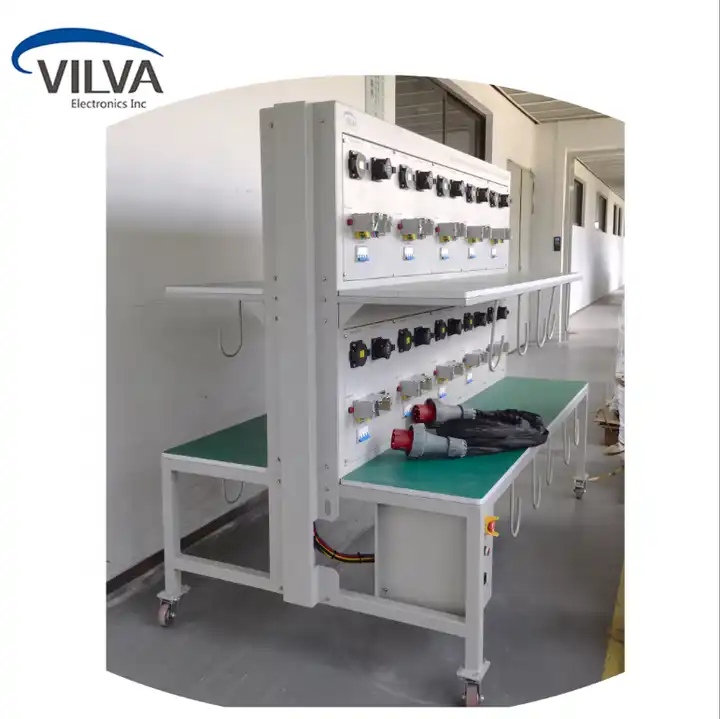

Aging Rack channel can be expanded according to the user's usage. Each channel has a charging control switch, voltage and current display, and charging indicator. Aging Rack is divided into upper and lower layers, and the bottom of the test frame is equipped with casters, are convenient for movement.

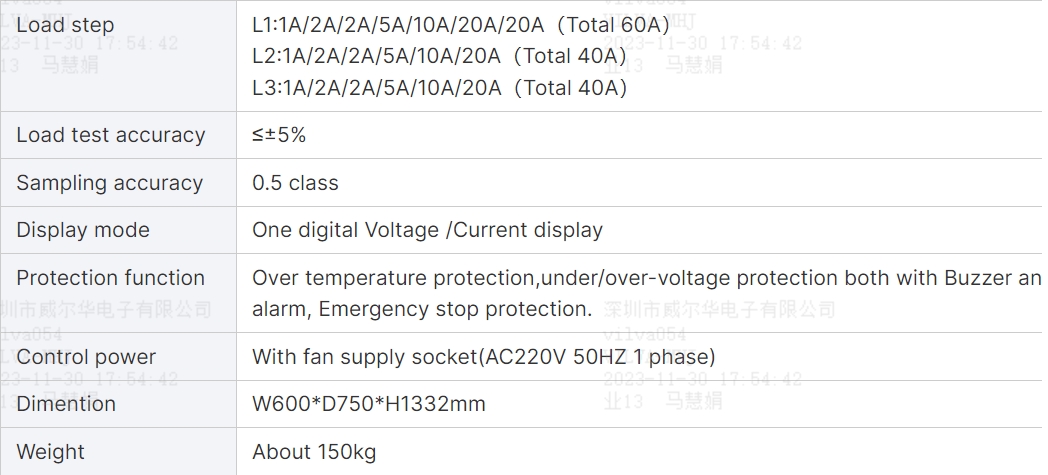

Using Aging Rack and load separation mode, the load part can be used independently and applied to other product tests. The load can be equipped with resistive load and feedback energy-saving load.
