AC380V-42KW Three-phase EV Charger pile testing Equipment with Chinese/European/American/ Japanese standard (any combination)
Product Description:
The VILVA-EV series AC charging pile test device is mainly used for online debugging, offline inspection, aging test, and functional verification of AC charging pile products. The test system strictly refers to the national standards GB/T18487.1-2015 and GB/T 20234.2-2015, and truly simulates the charging process and various faults of the actual vehicle, avoiding the inconvenience and test content caused by using an electric actual vehicle as a detection device. It is not comprehensive and cannot simulate problems such as formal failures. At the same time, it can avoid damage to the test vehicle caused by charging pile failure. The test system can measure charging voltage, current, power and electricity; test CP and CC guidance signals; in addition, it can simulate leakage faults and display the above parameters through a large-size touch screen for easy observation and operation.
Features:
1. Optional AC charging pile socket supports national, European and American standards;

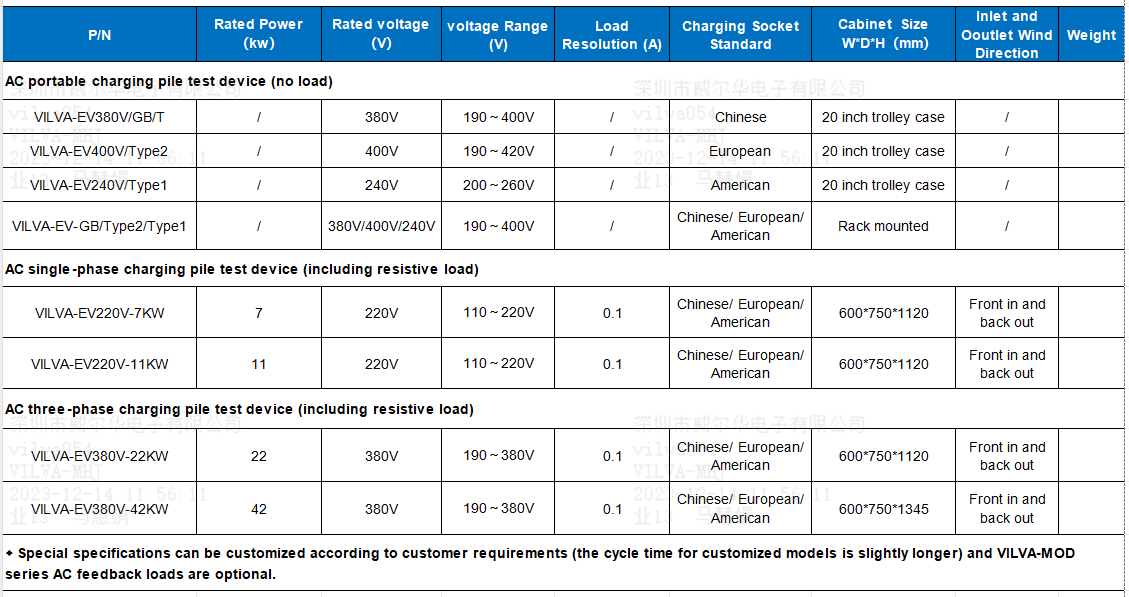

2. Optional power includes: single-phase 7kw, single-phase 11kw, three-phase 22kw, three-phase 42kw;
3. S2 switch control simulation;
4. Equipped with simulation leakage test;
5. Ability to measure AC charging pile voltage, current, and CP signals;
6. R2 resistance and R3 resistance simulate the equivalent resistance simulation function. Each contact is equipped with an on-off switch, which can realize the simulation of the on-off state of the contact;
7. PE, CP, CC switches for on-off of each contact circuit can realize the simulation function of on-off fault status of each circuit;
8. The connection temperature of the gun holder is displayed in real time;
9. Display the charging status of the charging pile in real time;
10. It has automatic test of host computer interoperability, and an interoperability test report can be generated after the test is completed;
11. The 7-inch touch screen for sampling is easy to operate and display;
12. Equipped with USB communication interface;
Protection functions: overvoltage, overcurrent, gun seat overtemperature, load overtemperature, fan failure
Working power supply: single-phase AC220V
Load accuracy: -5%-+2%
